Product Info

Power source:220/110/380v as custom
Rated Curent:see list
Rated power(W):see list
Lifting Force(kg.f):see list
Output Torque(N.m):see list
Max lifting height(m):see list
price:40-160$
Brand:as custom
Color:as custom

motorized roller blind motor

AC Motor

MODEL (smdoorcontrol.com)	Power Source （V）	Rated Curent（A）	Rated power(W)	Lifting Force(kg.f)	Output Torque(N.m)	Speed(r/min)	Max lifting height(m)
300 1P	220/110	3.3	180	300	168	5.2	4.5
500 1P	220/110	3.9	250	500	343	6.2	6
600 1P	220/110	3.9	370	600	412	5.2	6
800 1P	220/110	4.5	400	800	647	3.4	6
1000 1P	380	4.9	400	1000	809	3.4	6
300-3P	380	1.3	180	300	168	5.2	6
500-3P	380	1.3	250	500	343	6.2	6
600-3P	380	2	250	600	412	5.2	6
800-3P	380	2.3	300	800	647	3.4	6

DC Motor

MODEL (smdoorcontrol.com)	Power Source （V）	Battery power(V)	Rated power(W)	Lifting Force(kg.f)	Output Torque(N.m)	Speed(r/min)	Max lifting height(m)
DC-300KG	220/110	DC24	180	300	168	3.8	4.5
DC-500KG	220/110	DC24	220	500	343	4.2	6
DC-600KG	220/110	DC24	240	600	412	4.2	6
DC-800KG	220/110	DC24	300	800	412	4.2	6

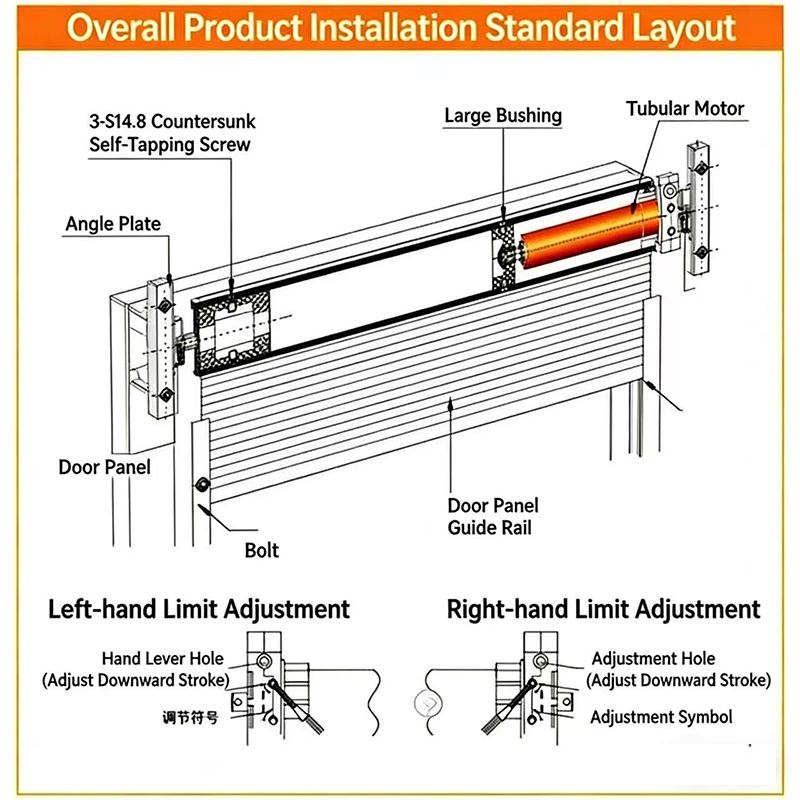

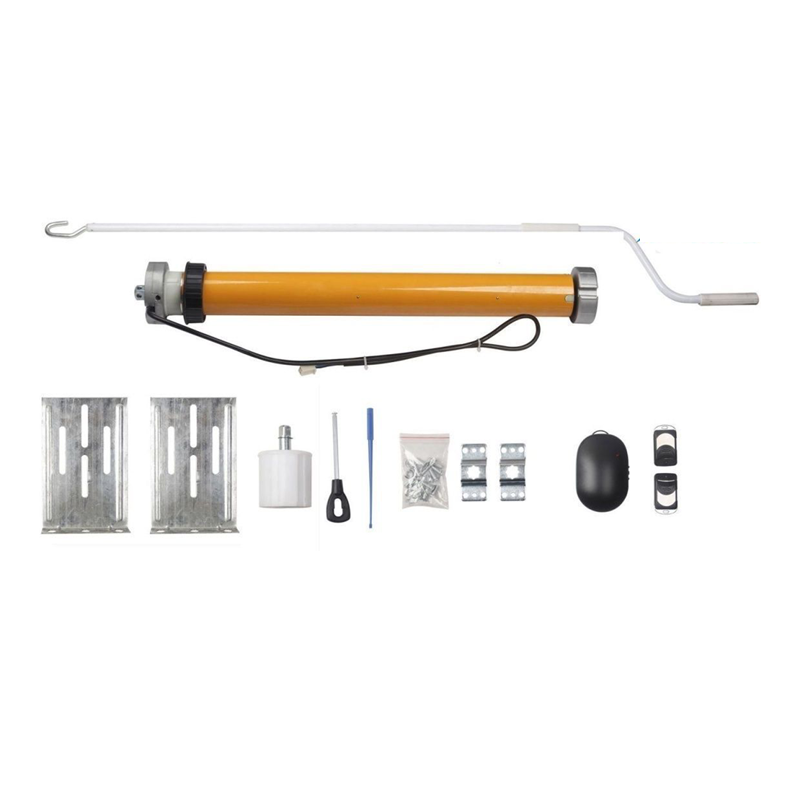

roller blinds motor.png 管状安装.png
